TP-HH-01

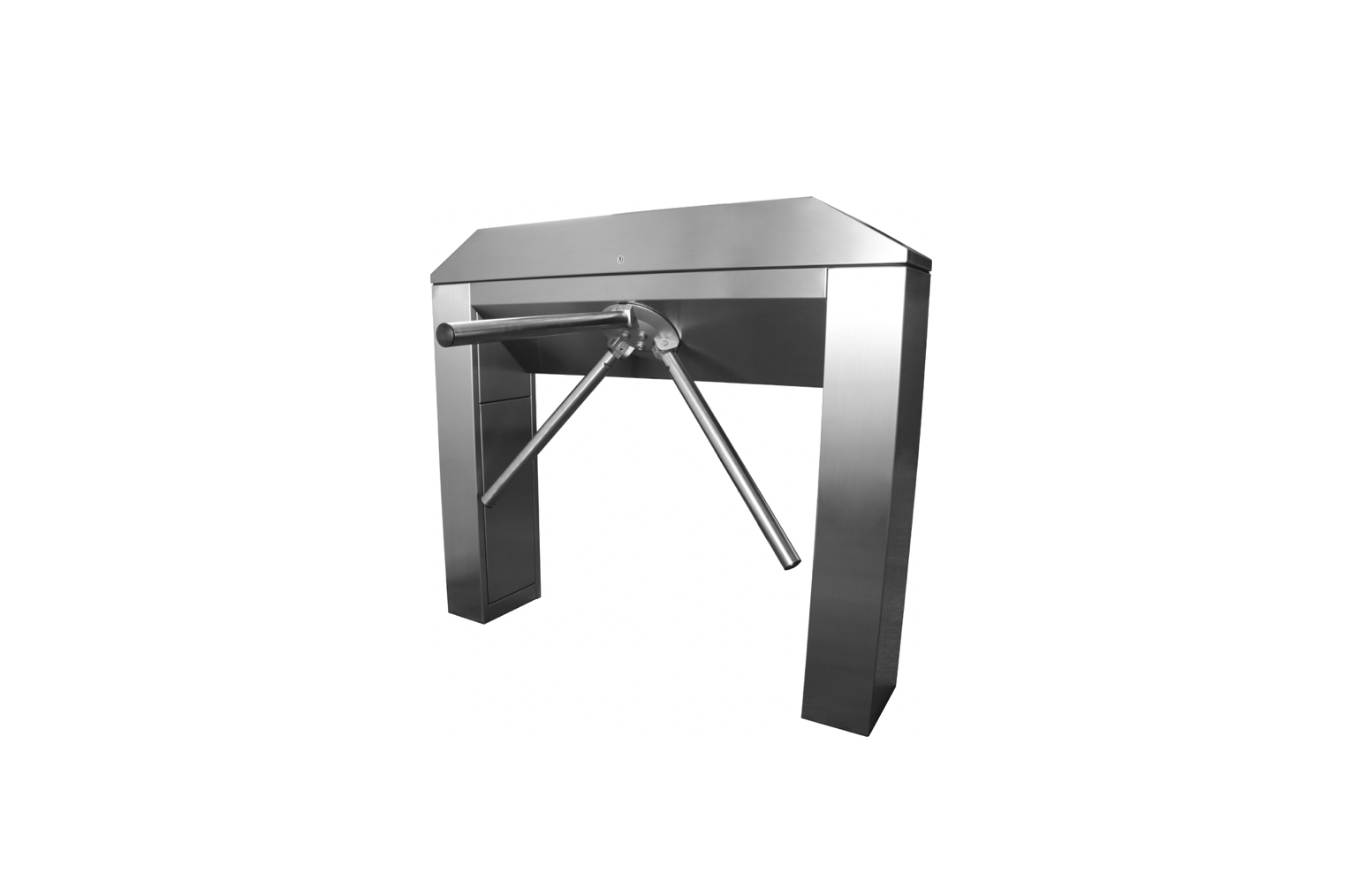

Tripod Turnstile

TP-HH-02

TP-HH-03

TP-HH-SERIES

* Models available : TP-HH-01 / TP-HH-02 / TP-HH-03 / TP-HH-04 / TP-HH-05 / TP-HH-06



Technical Specifications



Operation



Bi-directional

Standard material



SS304  * other materials available upon request

Dimension of cabinet



TP-HH-01 : 1108mm(L) x 260mm(W) x 1010mm(H)
TP-HH-02 : 1240mm(L) x 280mm(W) x 980mm(H)

Barrier arm



SS304 35(D)mm

Functions



Automatic self-centering arm preventing over travelling, electric locking control in both directions

Sensors



Auto reclosing contact sensors

Emergency mode



Fire alarm mode (trigger arm drop), free egress, power failure arm drop , fail secure (optional with UPS)

Power Supply



Input 230Vac / 50Hz , output 24Vdc

Flow of Passage



25 to 35 passages per minute

Operating temperature



10⁰C to +50⁰C

Usage



Indoor / outdoor

Passage width



535mm~600mm

Gross weight per cabinet



Approximate 70kg
