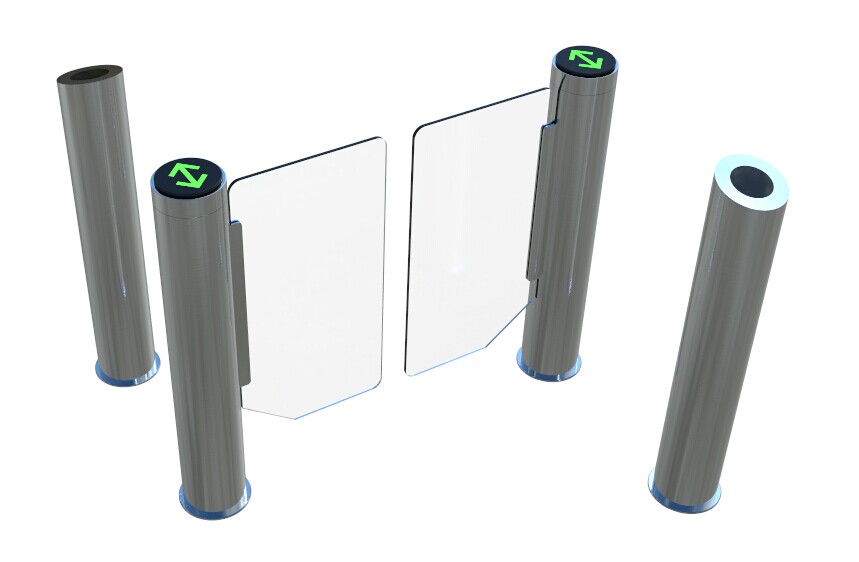

Technical Specifications

Operation

Bi-directional

Standard material

SS304  * other materials available upon request

Dimension of cabinet

168(D) mm x 1010(H)mm

Top cover

SS304 15mm acrylic panel

Barrier wing

12mm Acrylic

Motor

DC motor with adjustable open/close timing of 0.5 to 0.8 second

Functions

Programmable microprocessor, compatible integration with all third partly access controllers. Egress mode, fire mode, free access in emergency mode or power failure. Fail secure by battery backup (optional)

Detection beams

Each lane comes with infrared (IR) beam sensor to ensure safe usage

Safety features

Motor mechanism will disengage when an object tries to block the panel while closing or opening thus providing an additional safety feature for the pedestrians

Power supply

Input 230Vac / 50Hz , output 24Vdc /100W, typical: 0.5A Inrush: 1.5A

Flow of passage

30 to 40 passages/minute

Usage

Indoor

Passage width

550 ~ 1200mm, wide depening on model. (customisable upon request)*

Gross weight per cabinet

Approximate 70kg
