Technical Parameters:

Power Supply

12V/3.2A

Housing Size

1255H x300Wx160D mm

Housing Material

Stainless Steel, Tampered glass

Colour available

Yellow / Red

RF Card Read / Write Time

≤0.2s

RF Card Read / Write Distance

≤10cm

Mode of Communication

Base CAN bus, SD Memory Card

Communication Distance

1200m (CAN bus)

Record Storage

30,000

Card Capacity

10,000 pcs

Data Transmission Speed

4800bps / 100M

Working Temperature

Minors 30⁰C to 65⁰C

Working Environments

Indoor, outdoor

Relative Humidity

≤95% coagulation free

TRF-800 Bluetooth
Long-Range Reader

Bluetooth Card

Optional Items

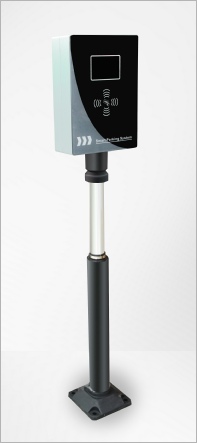

TRF-800 Bluetooth Long Range Reader

Features:

Operating modes: optical excitation positioning, CDMA   communications.
– Read direction can be adjusted in six direction: up & down, left &   right, depression angle & elevation angle.
– Anti-collision multi-card deal.
– Wiegand 26 and RS485 output.

Technical Parameters

Power Supply

12V/3A

Frequency

433MHz

Infrared Frequency

38KHz

Reader

1 ~ 20 meters (Max. Distance)

Reader Response Time

0.1 seconds

Reader Speed

0.5 seconds

Reader Time Interval

0.5 ~ 0.8 seconds

Operating Temperature

–30⁰C ~ +70⁰C
